Yocan Regen — Dual-Mode 510 Box Mod Kit with Quartz & Ceramic Heating Technology
The Yocan Regen redefines what a compact all-in-one heating device can deliver — engineered for serious enthusiasts who refuse to compromise between portability and performance. Featuring a built-in 1100mAh battery, tool-free coil swapping, and a precision-calibrated 3-voltage output system, the Regen eliminates the frustration of carrying multiple devices or enduring inconsistent sessions. Whether you’re loading wax concentrates with the QDC quartz dual coil or switching to dry herb mode with the XTAL ceramic chamber coil, this single kit handles it all with zero compromise on flavor purity or vapor density.
Yocan Regen – Real-World Solutions for Common Pitfalls
Most compact heating kits force buyers to choose: buy a dedicated wax device or a dry herb device. The Yocan Regen was built specifically to demolish that false choice. Here’s how it tackles the three most common frustrations reported by everyday users:
- Two Devices, One Battery — Eliminate the Gear Bag Tax: The Regen ships with both a QDC (Quartz Dual Coil) atomizer for concentrate use and an XTAL coil designed for dry herb material — both seated on the exact same 510-thread battery platform. Instead of maintaining two separate devices, two separate chargers, and two separate warranties, you carry one Regen kit. For users who regularly switch between material types throughout the day, this translates directly to saving $40–$80 on a second device purchase and eliminating the cognitive overhead of managing multiple battery charge cycles simultaneously.
- Pure Flavor Guaranteed — Quartz and Ceramic, Not Cheap Wick: Both included coil assemblies avoid the fiberglass wick and oxidizing nichrome construction that plagues budget heating devices. The QDC atomizer uses twin quartz rods wrapped in resistance coil wire — quartz is chemically inert at operating temperatures, meaning zero metallic or burnt industrial aftertaste contaminates your session. The XTAL ceramic chamber coil distributes heat through a porous ceramic body, gently enveloping material rather than scorching contact points. First-time Regen users consistently report a noticeably cleaner, more botanical flavor profile compared to wick-based competitors at the same price tier.
- Even, Consistent Heating From First Draw to Last: The Regen’s dual-coil QDC architecture means heat is applied symmetrically across the loaded material from two contact points rather than one. Combined with the selectable voltage settings (3.4V / 3.7V / 4.0V), users can dial in a low-temperature long session at 3.4V that coaxes full terpene expression without burning off lighter compounds prematurely, or ramp up to 4.0V for dense, final-draw vapor production. The result is consistent draw resistance and vapor density from the moment you press the fire button on the first hit to the very last draw in the chamber — no “hot spot” degradation that single-rod coil setups are notorious for.
Yocan Regen – Step-by-Step User Setup & Maintenance Guide
Getting the most out of the Regen requires understanding its activation sequence, proper material loading technique, and a disciplined cleaning routine. Follow this calibration and routing care protocol to maximize coil lifespan and flavor integrity across hundreds of sessions.
- First-Time Activation — Power Cycle & Charging Status Confirmation: Before your inaugural session, fully charge the Regen via its Micro-USB port until the indicator LED shifts from red (charging) to white (fully charged). To power the device on, execute 5 rapid consecutive clicks of the single multifunction button — the LED will flash 3 times confirming successful activation. Never attempt to draw from a first-charge device before this LED confirmation sequence completes, as the battery management circuit requires an initial full-charge calibration cycle to accurately report remaining capacity during subsequent uses.
- Material Loading Optimization — Airflow Routing and Chamber Packing Technique: For concentrate loading with the QDC atomizer, use the included dab tool to place a rice-grain-sized amount of material directly onto the quartz rods — avoid overloading, as excess material flows into the airflow channel and clogs the center post connection point, restricting draw resistance and degrading vapor quality. For dry herb loading with the XTAL ceramic coil, pack material to approximately 70–80% chamber capacity using a gentle tamping motion; an overpacked chamber blocks the critical upward airflow routing path through the mouthpiece screen and reduces convective heat distribution efficiency. Always verify the coil’s 510-thread connection is finger-tight before firing — a loose connection introduces resistance variance that causes inconsistent heating and premature coil burnout.
- Voltage Regulation — Three-Level Output Calibration via Button Logic: With the Regen powered on, execute 3 rapid clicks to cycle through the three precision voltage output levels: Green LED = 3.4V (low, optimal for flavor-forward sessions and terpene preservation), Blue LED = 3.7V (medium, balanced vapor density and temperature), Red LED = 4.0V (high, maximum vapor production for dense draws). For first-time users unfamiliar with their preferred operating temperature, always begin at Green/3.4V and progressively step up — starting at Red/4.0V with a freshly loaded QDC coil risks thermal shock to the quartz rods and can char delicate concentrate material before it fully vaporizes, introducing the exact burnt flavor the quartz construction is designed to prevent.
- Routine Element Cleaning — Non-Destructive Coil and Connection Maintenance: After every 5–7 sessions, perform a dry burn cleaning cycle on the QDC atomizer: with no material loaded, fire the coil at Green/3.4V for 2–3 second pulses while blowing gently through the mouthpiece to purge residual material from the quartz rods. For deeper cleaning of the 510-thread connection point and the inner airflow tube, use a cotton swab lightly dampened with isopropyl alcohol (90%+ concentration) to wipe the threading and center post — never submerge the atomizer body in solvent, as liquid infiltration of the coil connection degrades the resistance wire insulation over time. Maintaining clean threading ensures stable electrical contact and consistent voltage delivery to the heating element across the full calibrated output range.
Yocan Regen – Performance & Device FAQ
Can I use the Regen’s 510-thread connection with third-party atomizers beyond the included QDC and XTAL coils?
Yes — the Regen’s 510-thread interface is fully universal-standard, meaning it is mechanically and electrically compatible with any third-party 510-threaded atomizer on the market. However, Yocan calibrates the 3-voltage output range (3.4V–4.0V) specifically around the resistance profiles of the included QDC and XTAL coils, so always verify your third-party atomizer’s recommended wattage/voltage range before firing to avoid over-driving a low-resistance coil.
The Regen’s LED is flashing white 8 times rapidly and the device won’t fire — what does this indicate?
An 8-blink white LED sequence on the Regen is the built-in short-circuit protection alert, triggered when the device detects abnormal resistance at the 510-thread connection — most commonly caused by a loose atomizer, concentrate residue bridging the center pin, or a coil with a damaged resistance wire. Unscrew the atomizer, clean both the device’s 510 connection post and the atomizer’s threading with a dry cotton swab, reseat the coil firmly, and attempt reactivation before concluding the coil requires replacement.
What is the actual continuous draw time the Regen’s 1100mAh battery supports before requiring a recharge?
Under typical real-world usage at the medium Blue/3.7V setting with 3–5 second draw intervals, the Regen’s 1100mAh battery comfortably sustains 80–120 individual draw activations before the low-battery LED warning sequence triggers. For users who primarily operate at the low Green/3.4V setting, battery endurance increases proportionally — the lower current draw at 3.4V extends session count by approximately 15–20% compared to continuous Red/4.0V operation.
Yocan Regen Full Technical Data
- Battery Capacity: 1100mAh built-in lithium-ion cell
- Charging Protocol: Micro-USB charging port; full charge cycle approximately 2–3 hours from depleted state

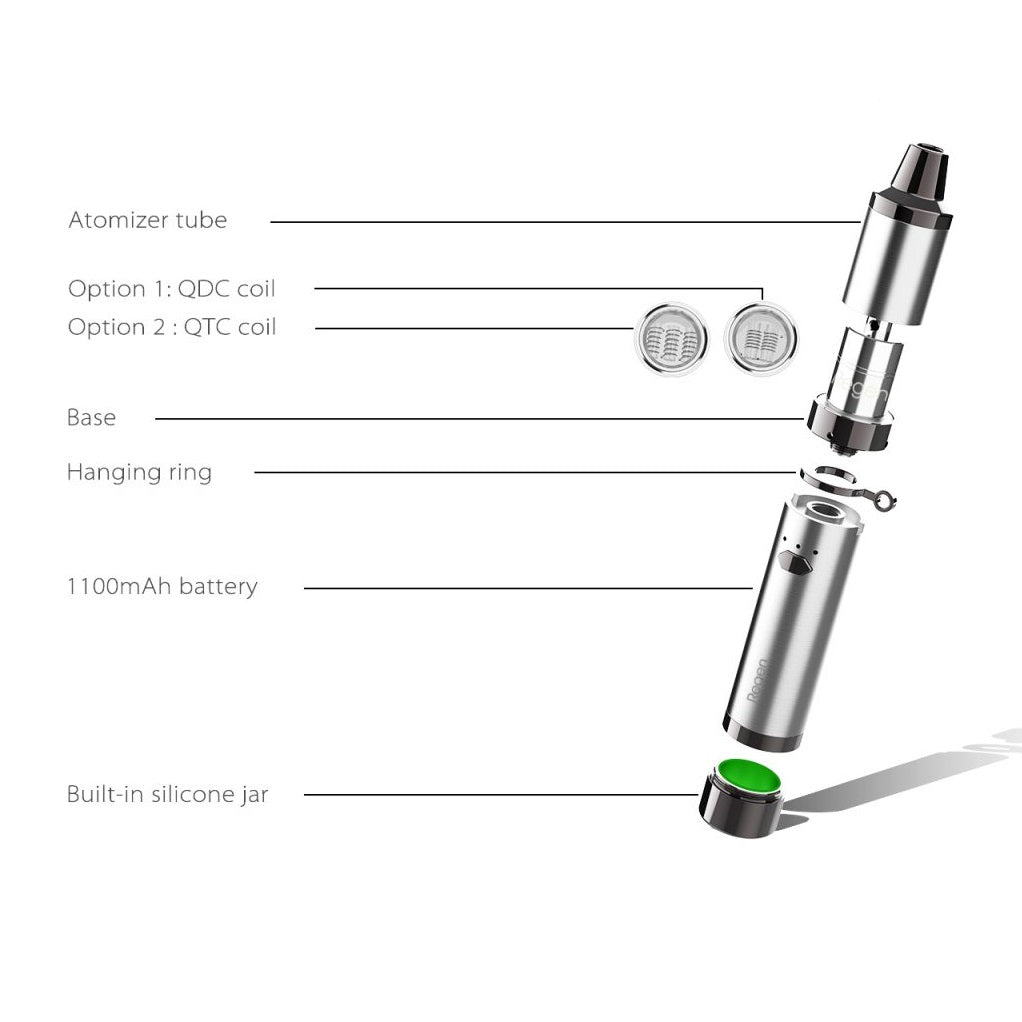

- Heating Core Technology: QDC (Quartz Dual Coil) atomizer for concentrate use; XTAL ceramic chamber coil for dry herb material — both included in kit
- Thread Compatibility: Universal 510-thread interface; compatible with all standard 510-threaded atomizers
- Operating Settings: Single multifunction button; 5-click power on/off; 3-click voltage cycle across 3 precision output levels: 3.4V (Green LED) / 3.7V (Blue LED) / 4.0V (Red LED); built-in short-circuit, low-voltage, and overtime protection
